Foreseen functions available in c#

Hereby a short description of the functions available for every robot.

Functions in ODfiware.cs

  • private void UpdateRobotInfo() : updates the data of the Robot, data is known as global variables
  • public void ParseRobotconfig(string path) : parse robot config.dat for input and output variables
  • public async void AddRobotIO(List i, List o) : Create the Inputs and outputs on the context broker.
  • public async void UpdateRobotIO(List i, List o) : Update the Inputs and outputs on the context broker.

Available Curl commands

  • Show Robot info for robot with serial number 123456:
curl -iX GET --url 'http://localhost:1026/v2/entities?type=Robot&q=serialNumber==123456&limit=1000'
  • Show Robot proState0 attribute value:
curl -X GET --url 'http://localhost:1026/v2/entities/urn:ngsi-ld:Robot:123456/attrs/proState0/value'

result:

"#P_ACTIVE"
  • List all Inputs for robot with serial number 123456
curl -iX GET --url 'http://localhost:1026/v2/entities?type=Input&q=robotSerialNumber==123456&limit=1000'
  • Show Input 'CILDET_7' for robot with serial number 123456:
curl -iX GET --url 'http://localhost:1026/v2/entities/urn:ngsi-ld:Input:123456-CILDET_7'

result:

{"id":"urn:ngsi-ld:Input:123456-CILDET_7",
"type":"Input",
"dateCreated":{"type":"DateTime","value":"2021-05-07T10:56:16.00Z","metadata":{}},
"inputNumber":{"type":"Number","value":99,"metadata":{}},
"inputValue":{"type":"Boolean","value":false,"metadata":{}},
"robotSerialNumber":{"type":"Number","value":123456,"metadata":{}}}
  • Delete Input 'CILDET_7' for robot with serial number 123456:
curl -iX DELETE --url 'http://localhost:1026/v2/entities/urn:ngsi-ld:Input:123456-CILDET_7'
  • List all Outputs for robot with serial number 123456:
curl -iX GET --url 'http://localhost:1026/v2/entities?type=Output&q=robotSerialNumber==123456&limit=1000'
  • Show Output 'BLOWOFF' for robot with serial number 123456:
curl -iX GET --url 'http://localhost:1026/v2/entities/urn:ngsi-ld:Output:123456-BLOWOFF'

result:

{"id":"urn:ngsi-ld:Output:123456-BLOWOFF",
"type":"Output",
"dateCreated":{"type":"DateTime","value":"2021-05-07T10:56:17.00Z","metadata":{}},
"outputNumber":{"type":"Number","value":81,"metadata":{}},
"outputValue":{"type":"Boolean","value":true,"metadata":{}},
"robotSerialNumber":{"type":"Number","value":123456,"metadata":{}}}
  • Set outputValue to true for Output 'BLOWOFF' for robot with serial number 123456:
curl -iX POST \
  --url 'http://localhost:1026/v2/entities/urn:ngsi-ld:Output:123456-BLOWOFF/attrs' \
  --header 'Content-Type: application/json' \
  --data '{
    "outputValue":{"type":"Boolean", "value": true}
}'

Used data model

The data model exists of entities representing the status variables of the robot. To represent the I/o of the robot the necessary entities are created at startup of the api.

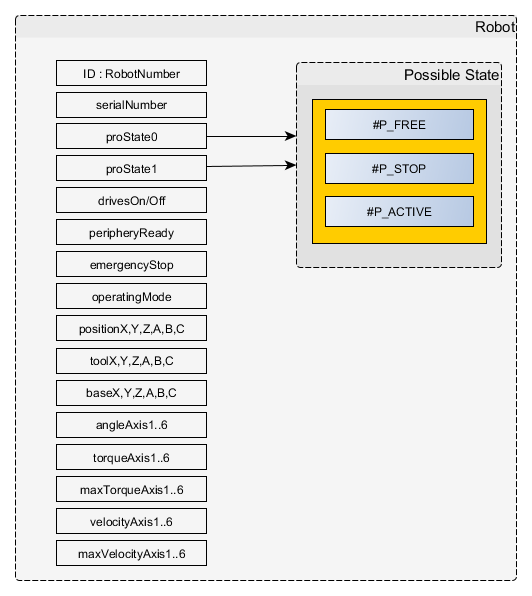

  • Model for Robot

modelgraphRoseAP

  • Model definition for Robot
curl -iX POST \
  'http://localhost:1026/v2/entities' \
  -H 'Content-Type: application/json' \
  -d '
 {
  "id": "urn:ngsi-ld:Robot:876543",
  "type": "Robot",
  "serialNumber": { "type": "Number", "value": 876543 },
  "proState0": { "type": "Text", "value": "#P_FREE" },
  "proState1": { "type": "Text", "value": "#P_FREE" },
  "drivesOn": { "type": "Boolean", "value": false },
  "drivesOff": { "type": "Boolean", "value": true },
  "peripheryReady": { "type": "Boolean", "value": true },
  "emergencyStop": { "type": "Boolean", "value": false },
  "operatingMode": { "type": "Text", "value": "#AUT" },
  "positionX": { "type": "Number", "value": 45 },
  "positionY": { "type": "Number", "value": 100 },
  "positionZ": { "type": "Number", "value": 200 },
  "positionA": { "type": "Number", "value": 20 },
  "positionB": { "type": "Number", "value": 10 },
  "positionC": { "type": "Number", "value": 15 },
  "toolX": { "type": "Number", "value": 20 },
  "toolY": { "type": "Number", "value": 200 },
  "toolZ": { "type": "Number", "value": 100 },
  "toolA": { "type": "Number", "value": 11 },
  "toolB": { "type": "Number", "value": 33 },
  "toolC": { "type": "Number", "value": 22 },
  "baseX": { "type": "Number", "value": 0 },
  "baseY": { "type": "Number", "value": 0 },
  "baseZ": { "type": "Number", "value": 0 },
  "baseA": { "type": "Number", "value": 0 },
  "baseB": { "type": "Number", "value": 0 },
  "baseC": { "type": "Number", "value": 0 },
  "angleAxis1": { "type": "Number", "value": 10 },
  "angleAxis2": { "type": "Number", "value": 20 },
  "angleAxis3": { "type": "Number", "value": 30 },
  "angleAxis4": { "type": "Number", "value": 40 },
  "angleAxis5": { "type": "Number", "value": 50 },
  "angleAxis6": { "type": "Number", "value": 60 },
  "torqueAxis1": { "type": "Number", "value": 1500 },
  "torqueAxis2": { "type": "Number", "value": 1000 },
  "torqueAxis3": { "type": "Number", "value": 300 },
  "torqueAxis4": { "type": "Number", "value": 0 },
  "torqueAxis5": { "type": "Number", "value": 0 },
  "torqueAxis6": { "type": "Number", "value": 0 },
  "maxTorqueAxis1": { "type": "Number", "value": 4500 },
  "maxTorqueAxis2": { "type": "Number", "value": 4500 },
  "maxTorqueAxis3": { "type": "Number", "value": 4500 },
  "maxTorqueAxis4": { "type": "Number", "value": 4500 },
  "maxTorqueAxis5": { "type": "Number", "value": 4500 },
  "maxTorqueAxis6": { "type": "Number", "value": 4500 },
  "velocityAxis1": { "type": "Number", "value": 6 },
  "velocityAxis2": { "type": "Number", "value": 5 },
  "velocityAxis3": { "type": "Number", "value": 4 },
  "velocityAxis4": { "type": "Number", "value": 3 },
  "velocityAxis5": { "type": "Number", "value": 2 },
  "velocityAxis6": { "type": "Number", "value": 1 },
  "maxVelocityAxis1": { "type": "Number", "value": 100 },
  "maxVelocityAxis2": { "type": "Number", "value": 100 },
  "maxVelocityAxis3": { "type": "Number", "value": 100 },
  "maxVelocityAxis4": { "type": "Number", "value": 100 },
  "maxVelocityAxis5": { "type": "Number", "value": 100 },
  "maxVelocityAxis6": { "type": "Number", "value": 100 }
}'
  • Model for Input

Input

  • Model definition of input for robot based on InputNames and InputValues
curl -iX POST \
  'http://localhost:1026/v2/entities' \
  -H 'Content-Type: application/json' \
  -d '
{
  "id": "urn:ngsi-ld:Input:876543-Inputname",
  "type": "Input",
  "inputValue": {
    "type": "Boolean",
    "value": true
  },
  "inputNumber": {
    "type": "Number",
    "value": 1
  },
  "dateCreated": {
      "type" : "DateTime",
      "value": "2000-01-01T00:00:00Z"
  },
  "robotSerialNumber": {
    "type": "Number",
    "value": 876543
  }
}'
  • Model for Output

Output

  • Model definition of output for robot based on OutputNames and OutputValues
curl -iX POST \
  'http://localhost:1026/v2/entities' \
  -H 'Content-Type: application/json' \
  -d '
{
  "id": "urn:ngsi-ld:Output:876543-Outputname",
  "type": "Output",
  "outputValue": {
    "type": "Boolean",
    "value": true
  },
  "outputNumber": {
    "type": "Number",
    "value": 1
  },
  "dateCreated": {
      "type" : "DateTime",
      "value": "2000-01-01T00:00:00Z"
  },
  "robotSerialNumber": {
    "type": "Number",
    "value": 876543
  }
}'
